In deionized water source: surface treatment equipment

　　Equipment parameters:
　　Name: surface treatment with deionized water equipment
　　Model: zl-bm001
　　Operating pressure: 0.3 (Mpa)
　　Water resistivity: 10 m omega. Cm above
　　Water yield: 400-800 - g
　　Dimension: 48 * 65 * 65 (cm)
　　Voltage: 220 (V)
　　High quality: deionized water, ultrapure water, laboratory pure water
　　Power: 150 (w)
　　Electrical conductivity: 0.05 to 0.01
　　The desalination rate: 98.7 (%)
　　Single output: 18 (/ h)
　　Summary:
　　Surface treatment industry, in order to increase the surface finish, brightness, plating adhesion, the configuration of the plating solution requires the use of electrical conductivity in 15 us/cm below the water, in addition also need when a plating rinse water conductivity under 10 us/cm to cleaning, electroplating industry, water treatment system including plating solution preparation needed before electroplating pure water treatment system, rare metal recycling in electroplating rinse water rinse water recycle wastewater zero discharge system.Usually system by the ultrafiltration device, reverse osmosis devices, ion exchange, EDI device, etc., to meet the requirements of electroplating industry of water quality.
　　Areas of application:
　　1.The plating (gold-plated, silver plated, winding plating, plastic plating, chrome plating, such as galvanized water), glass coating with high pure water
　　2.The ultrasonic cleaning, ultrasonic cleaning with pure water, chemical plating, electrophoresis with pure water
　　3.Auto, home appliances, building materials products surface coating, cleaning water
　　4.The other requirements of surface treatment with pure water
　　Equipment:
　　Ultrapure water equipment series, the product belongs to the laboratory through import reverse osmosis membrane to remove about 98.9% after ion, by a dedicated nuclear grade ion exchange resin to deep desalting, long service life, the pure water resistivity by up to 18 m omega. Cm, meet ultrapure water standards, exceeding the standards laboratory level of water.Adopt new humanized design, fully realize the separation of water and electricity, enhances the product use safety performance.Using integrated filter, filter replacement is more simple and easy.
　　Technological process:
　　1.Using ion exchange way, the process is as follows:
　　Raw water, raw water pump to automatic multiple medium filter, an automatic activated carbon filter to fully automatic water softener, precision filter - Yang resin filter bed - Yin resin bed, mixed bed resin of Yin and Yang to microporous filter, water points
　　2.Using two-stage reverse osmosis, the process is as follows:
　　Raw water, raw water pump to automatic multiple medium filter, an automatic activated carbon filter to fully automatic water softener, the precision filter - the first level of reverse osmosis - PH adjustment to the middle water tank, the second ro (reverse osmosis membrane surface is positively charged) to purified water, pure water pump - microporous filter - water points
　　3.Using EDI way, the process is as follows:
　　Raw water, raw water pump to automatic multiple medium filter, an automatic activated carbon filter to fully automatic water softener, the precision filter - level 1 reverse osmosis machine - the middle water tank - intermediate water pump - EDI system - microporous filter - water points

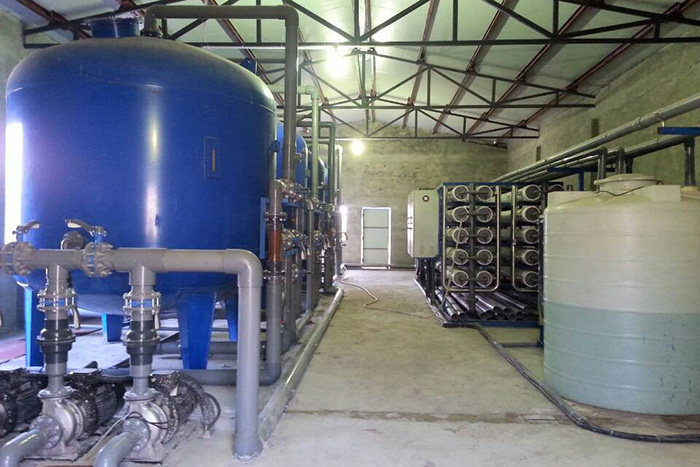

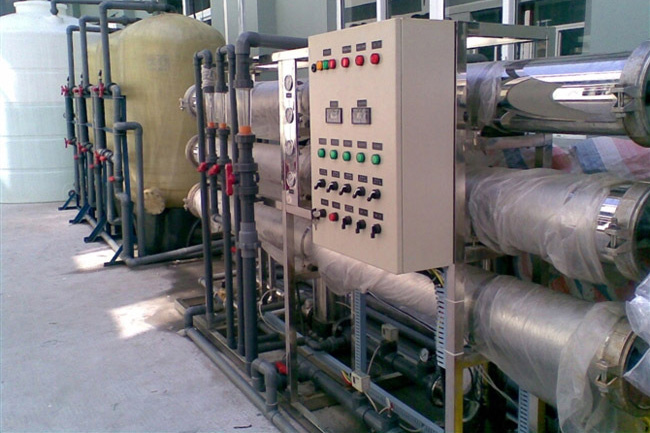

　　Similar products the appended drawings:
